Volvo XC90 Hitch
INSTALLATION & OPERATING INSTRUCTIONS
Stealth’s fully welded tow hitch for the Volvo XC90 is strong and durable with a Lifetime Guarantee. The combination of a stainless steel latch block and powder coat finish provides excellent rust protection allowing you to enjoy your eco-adventures and not worry about the function of your hitch.
The vehicle capacities with the Volvo XC90 tow hitch are:
Hitch Towing Capacity
|
Vehicle Towing Capacity*
|
• 6,000 lbs - gross trailer weight (GTW)
|
• 6,000 lbs - gross trailer weight (GTW)
|
• 600 lbs - tongue weight (TW)
|
• 500 lbs - tongue weight (TW)
|
* Please confirm vehicle capacities with vehicle owner’s manual.
Stealth Hitches Advantages to the Conventional After Market Hitch:
|
- No visible cutouts in the bumper.
|
|
- No welding or drilling required.
|
- Protects the crumple zone of the vehicle.
|
- No permanent attachments hanging under the vehicle.
|
- Integral theft resistant lock and key.
|
|
- Any foot activated hatch releases remain active.
|
- Great for bikes, extra cargo, skis and more.
|
What's included in each Volvo hitch package?
Stealth Hitches offers a rack only package and a combo package with tow and rack options. The same cross beam and vertical latch block are used on all packages so if you need to upgrade to tow later you can with the Audi Conversion Package.

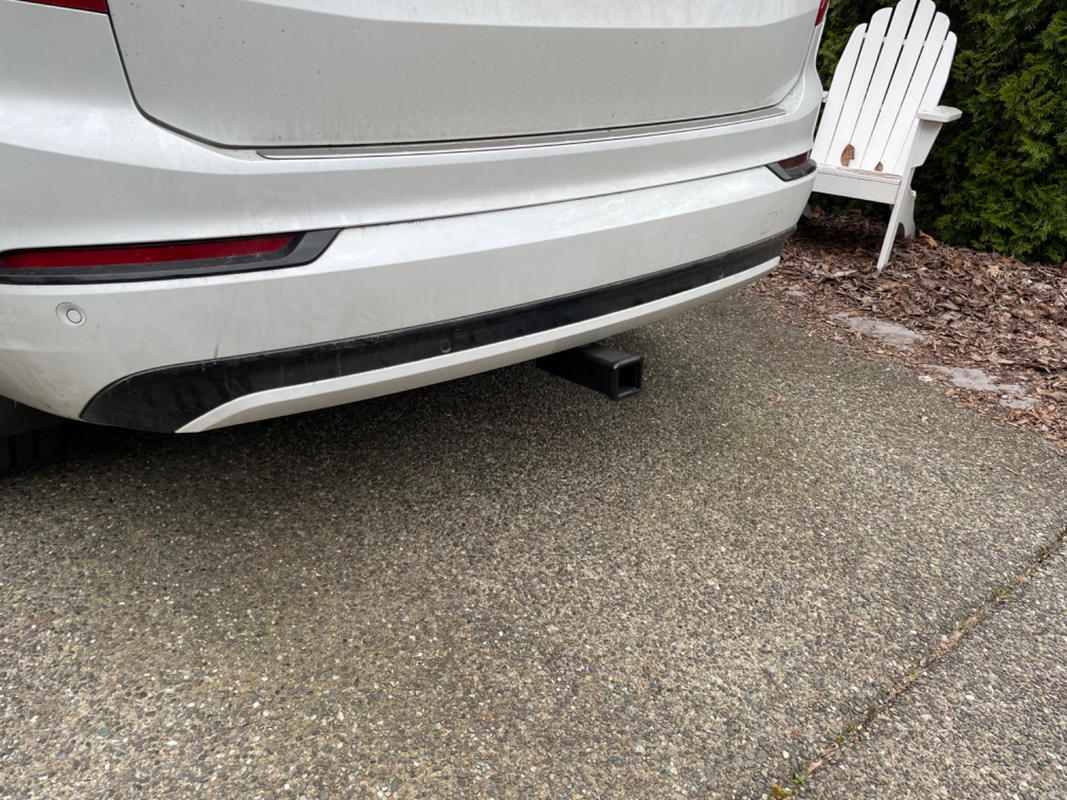

The Volvo hitch Rack Package comes with standard 2" detachable rack receiver that accepts current versions of bike racks, ski racks, cargo platforms, and other square tube accessories. A wiring harness is not required if rack connections are the customers only application.
The Volvo Combo Package uses a detachable ball mount that operates differently than a typical square tube receiver hitch. When inserted into the stainless-steel receiver block, a tight connection is created to the vehicle frame, eliminating the jerking and banging associated with square tube receivers type hitches during starts and stops. This solid connection creates less wear and tear on the vehicle transmission and is a more pleasurable ride for the passengers. The tight connection also allows our hitch to pass the more stringent European test requirements which carries a higher towing rating than the US rating. Our hitches conform to both US (SAE) and European (EU) test requirements.
Stealth Wiring Harness
Our "Stealth" wiring harness and controller is specifically designed to monitor and duplicate the tail light functions. Drawing current from the tail light circuits can cause vehicle faults, especially on European vehicles. Our controller draws current directly from the battery to eliminate this issue. For vehicles with numerous trailer lights, Stealth harnesses are designed to increase the current capacity from the typical 5-amp solid state limitation to a full 20 amps.
